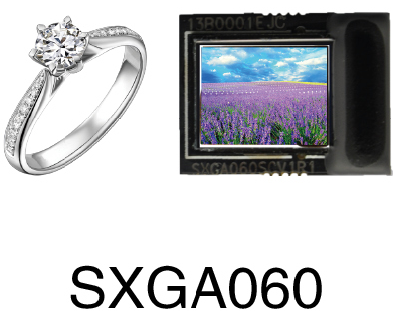

SXGA060 is a low power consumption AMOLED microdisplay which is 0.6 inch and has SXGA (1280×1024) resolution.

The product series comprise full color, mono white, mono green and mono red display. Full digital video signal process

and 1284*3*1028 driver units are integrated on the silicon substrate which is fabricated in 0.18μm CMOS technology.

　　Features：

　　· Low Power Consumption 0.18μm CMOS Si-Base AMOLED

　　· 1280 (×3) 1024Total Pixels

　　· 8/16/24 Bit Digital Video Interface

　　· Video Signal Enhancement

　　· Gamma Correction

　　· 8 Bit/256 Grey Levels，10Bit / 1024Levels

　　· Support Binocular Stereovision

　　· H/V Direction & Position Adjustment

　　· Embedded Temperature Sensor

　　· Integrated DC-DC Converter

　　· Built-in Test Patterns

　　· 2-Wire Serial Communication Interface

　　Technical Parameters：

　　Format: 1280(×3) × 1024

　　Pixel Aspect Ratio: Square

　　Pixel Pitch: 9.3μm

　　Color Pixel Layout: Vertical RGB stripe

　　Viewing Area: 11.941×9.560mm

　　Gray Levels: 8Bit / 256Levels，10Bit / 1024Levels

　　Luminance Uniformity: ≥90%

　　Work Temperature: -40℃ ~ +65℃

　　Video Signal interface: ITU-R BT.601/656

　　Control Interface： 1.8/3.3V LVTTL Digital IO
